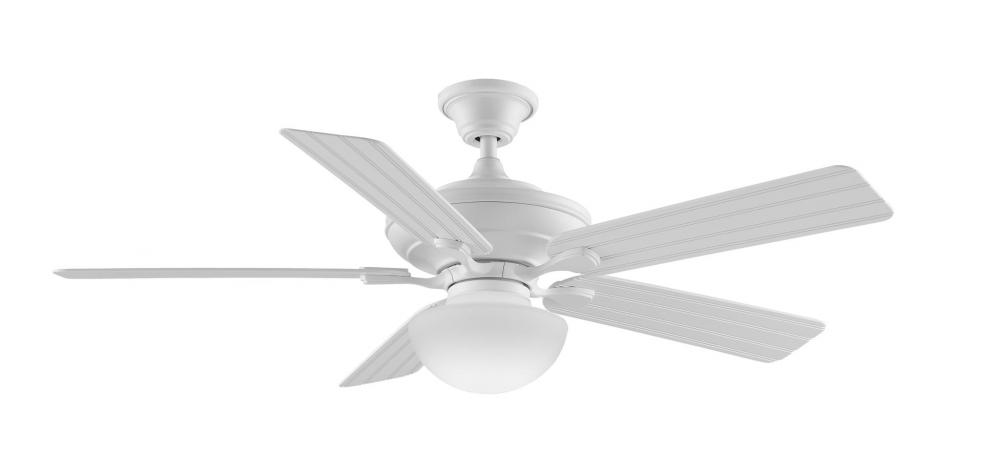

myFanimation - DC Motor (54, 60, 72 inch Blades) - MW

myFanimation - DC Motor (54, 60, 72 inch Blades) - MW by Fanimation

  • Part Number: D1MW
  • UPC: 00840506062566
  • Availability: ITEM DISCONTINUED - call 905-664-1912 for availability
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Energy Information at High Speed
Airflow:
4998 Cubic Feet per Minute
Electricity Rate:
35 Watts (excluded lights)
Airflow Efficiency:
145 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
Damp Rated
Number of Blades:
5 Blades
Finish:
Matte White
Option:
Damp Rated
Category:
Fan-Multi
Family:
myFanimation
Voltage:
120
Additional Info:
6,906 CFM on High
Compatible with most smart home devices
Fan Speed, Sleep Timer, Home Away, Fresh Air, Safe Exit and Reverse airflow features
Limited Lifetime Warranty
Multiple blade finishes and LED Light kit with vintage bulb available, sold separately
TR205 fanSync Bluetooth handheld remote with 3V CR2032 batteries included
Air Flow CFM:
4998
Air Flow Efficiency:
145
Amperage:
0.48
Blade Pitch:
14
Canopy:
Diameter- 6.4 Height- 2.83
Diameter:
12.98
Down Rod Included:
4.5
Electricity Used:
35
Harmonized Codes:
8414.51.3000
Length:
54
Light Kit Included:
No
Max Length:
72
Max Width:
72
Motor Fan Speed:
16
Motor RPM:
155
Motor Size:
DC158 x 22
Motor Type:
DC
Remote Control Included:
TR205
Ship Carton Height:
11.7
Ship Carton Length:
14.80
Ship Carton Width:
14.8
Ship Weight:
21.16
Sold By:
Each
Warranty:
Limited Lifetime Warranty
Weight:
19.03
Airflow Efficiency Low:
435
Airflow Efficiency Medium:
248
Avg Airflow Efficiency:
189
Avg CFM Energy:
4561
Avg Energy Use Watts:
24
Avg Estimated Yearly Energy Cost:
7
Avg Estimated Yearly Energy Cost on HIGH:
10
Cap Included:
No
Carton Cubic Feet:
1.4831
Cartons Per Unit:
1
Case Height:
11.7
Case Length:
14.8
Case Weight Pounds:
21.16
Case Width:
14.8
CEC Uploaded:
Yes
Ceiling To Blade Edge:
13.2
Ceiling to Bottom No LK:
14.7
CFM Low:
1045
CFM Medium:
3348
Compatible Accessories:
APG245BL, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCK1-52MW
Compatible Blades:
B154CY, B154DWA, B154MW, B154WA, B154WE, B160CY, B160DWA, B160MW, B160WA, B160WE, B172CY, B172DWA, B172MW, B172WA, B172WE, B254CY, B254DWA, B254MW, B254WA, B260CY, B260DWA, B260MW, B260WA, B272CY, B272DWA, B272MW, B272WA, B354CY, B354DWA, B354MW, B354WA,
Compatible Light Kits:
F1MW, F2MW, F3MW, F4MW
Compatible Wall Controls:
TW206
Country of Origin:
China
Current Draw Low:
0.06
Current Draw Medium:
0.25
Damp Rated:
Yes
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Included Control Type:
Handheld
Leadwire:
80
Maximum Slope Degree:
19
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Product Certification:
UL
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM Low II:
50
RPM Medium IV:
108
Safety Rating:
UL/cUL
Voltage Cycles:
60HZ
Watts Low:
2
Watts Medium:
14
Manufactured By:
Fanimation
