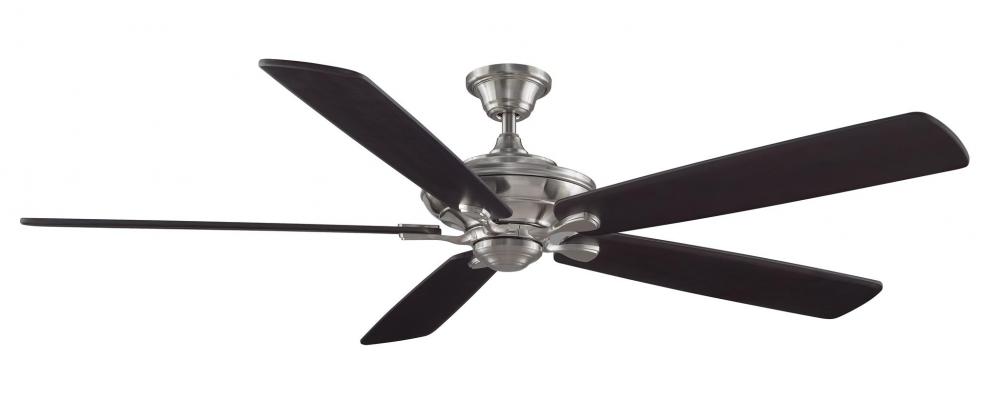

myFanimation - AC Motor (54 inch Blades) - BN by Fanimation

Part Number: A1BN
UPC: 00840506062481
Availability: ITEM DISCONTINUED - call 905-664-1912 for availability

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Info & Guides

Click Here to View Specsheets

Specifications

Energy Information at High Speed

Airflow:

6235 Cubic Feet per Minute

Electricity Rate:

75 Watts (excluded lights)

Airflow Efficiency:

83 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Nickel /vendors/vendorImages nickel.jpg

Style:

Traditional

Option:

Damp Rated

Number of Blades:

5 Blades

Finish:

Brushed Nickel

Option:

Damp Rated

Category:

Fan-Multi

Family:

myFanimation

Voltage:

120

Additional Info:

BTT9R Bluetooth hand-held remote included

Damp Rated

Energy Star rated

Optional 54" blades

Optional exclusive lighting fitters and light kits

Air Flow CFM:

6235

Air Flow Efficiency:

Amperage:

0.63

Blade Pitch:

Canopy:

Diameter- 6.34 Height- 2.83

Diameter:

12.98

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

14.76

Light Kit Included:

Motor Fan Speed:

Motor RPM:

176

Motor Size:

188 x 25

Motor Type:

Remote Control Included:

BTT9R

Ship Carton Height:

11.73

Ship Carton Length:

14.76

Ship Carton Width:

14.76

Ship Weight:

23.49

Sold By:

Each

Warranty:

Limited Lifetime Warranty

Weight:

23.5

Airflow Efficiency Low:

186

Airflow Efficiency Medium:

117

Avg Airflow Efficiency:

Avg CFM Energy:

2810

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Cap Included:

Carton Cubic Feet:

1.4789

Cartons Per Unit:

Case Height:

11.73

Case Length:

14.76

Case Weight Pounds:

23.49

Case Width:

14.76

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.78

Ceiling to Bottom No LK:

14.2

CFM Low:

1697

CFM Medium:

4036

Compatible Accessories:

APG245BL, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN

Compatible Blades:

B154CY, B154DWA, B154MW, B154WA, B154WE, B254CY, B254DWA, B254MW, B254WA, B354CY, B354DWA, B354MW, B354WA, B454CYN, B454WADWA, B554DWA, B554MW, B654DWA, B654MW, B754DWA, B854DC, B854MW

Compatible Controls:

BTT9, C4, CRL4WH, CRL8TS

Compatible Light Kits:

F1BN, F2BN, F3BN, F4BN

Compatible Wall Controls:

C21, CW1LA, CW1SWLA, CW1SWWH, CW1WH, CW2LA, CW2WH, CW5LA, CW5WH, CW60WH

Country of Origin:

China

Current Draw Low:

0.21

Current Draw Medium:

0.42

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Included Control Type:

Handheld

Leadwire:

Maximum Slope Degree:

Motor Finish Method Type:

Plated

Motor Reversible:

Yes

Number of Blades:

Product Certification:

Regulated Product:

Yes

RPM Low II:

RPM Medium IV:

109

Safety Rating:

UL/cUL

Voltage Cycles:

60HZ

Watts Low:

Watts Medium:

Manufactured By:

Fanimation
