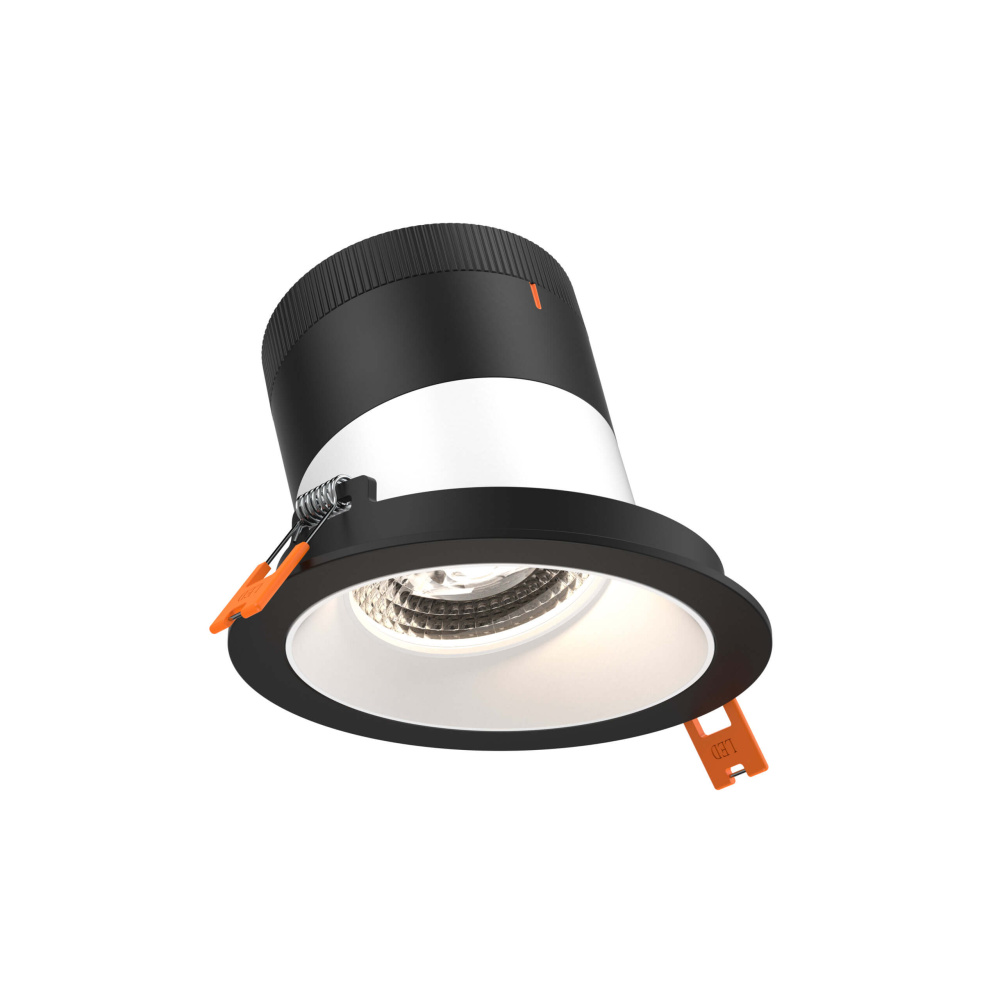

4in Modular Downlight, 5CCT, 60 degree Beam Angle, Slope Ceiling, White, Black Trim

4in Modular Downlight, 5CCT, 60 degree Beam Angle, Slope Ceiling, White, Black Trim by Dals

  • Part Number: RC04-CC-60-SLWH-TBK
  • UPC: 00775902028253
  • Availability: Call 905-664-1912 to check availability
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (16)
Product Overview
Info & Guides
A versatile recessed lighting solution available in three-, four-, and six-inch sizes, featuring customizable finishes, trims, lenses, and reflectors, with options for standard, sloped ceiling, and trimless installations, all with multi-voltage compatibility. Perfect for commercial or residential spaces. 288 possibilities!
Specifications
Details
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Category:
Recessed
Subcategory:
Modular
Finish:
White
Option:
Energy Star
Outdoor
Title 24
Family:
Versa
Voltage:
120 V/ 277 V/ 347 V
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
3.5
Ship Carton Length:
12
Ship Carton Width:
9.65
Ship Weight:
2.5
Warranty:
5 Years Limited
Weight:
0.2
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
60
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
2200
Dimmer Type:
Triac / ELV
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
Lens Material:
Glass
Location Rating:
Wet Rated
Max Wattage:
16 W/ 20 W/ 24 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
6.3
Shipping Master Length:
21.5
Shipping Master Quantity:
50
Shipping Master Weight:
14.65
Shipping Master Width:
21.5
Title 24:
Yes
Wiring:
Hardwired
Manufactured By:
Dals
Other Details
20°, 35°, or 60° beam angles included
Customizable trims and reflector shapes and colors
Multi-watt output allows you to choose from three wattage settings for customizable brightness directly on the jbox
Regressed, Slope ceiling and Trimless options
Rotary dial CCT switch
